Melba Swintex | Olympic Pedestrian Barrier

Olympic Barrier

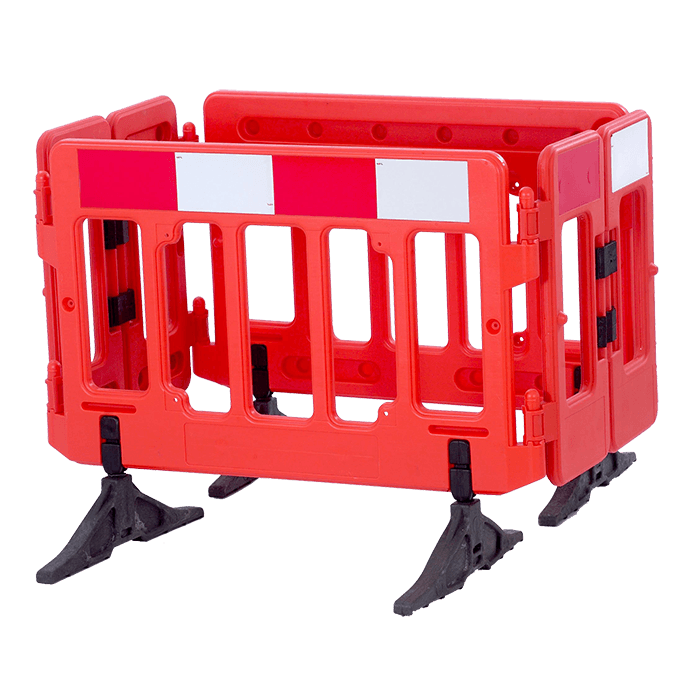

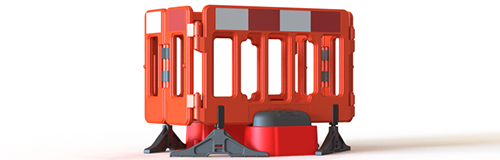

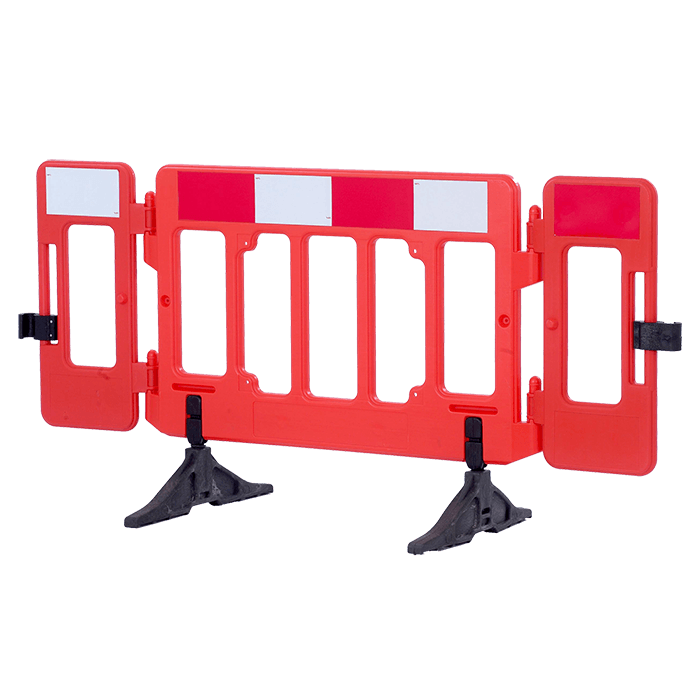

The Olympic Barrier offers the complete versatile system for utility and construction applications with hinged side wings designed to rotate and self lock at every 90°. This unique feature allows contractors to create configurations to protect temporary pathway excavations and road works of all kinds.

Features

Side wings fold - Easy transport where space is limited.

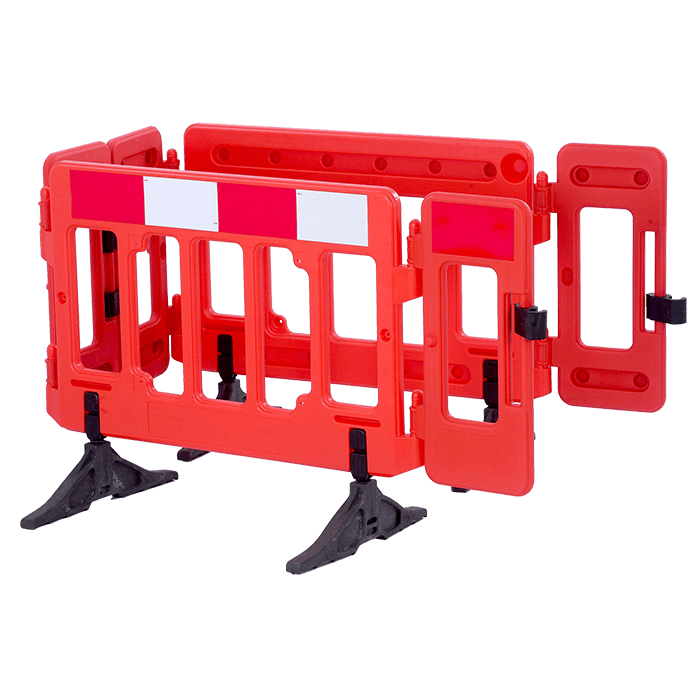

Side wings rotate and lock at 90°.

Fixing area for courtesy board.

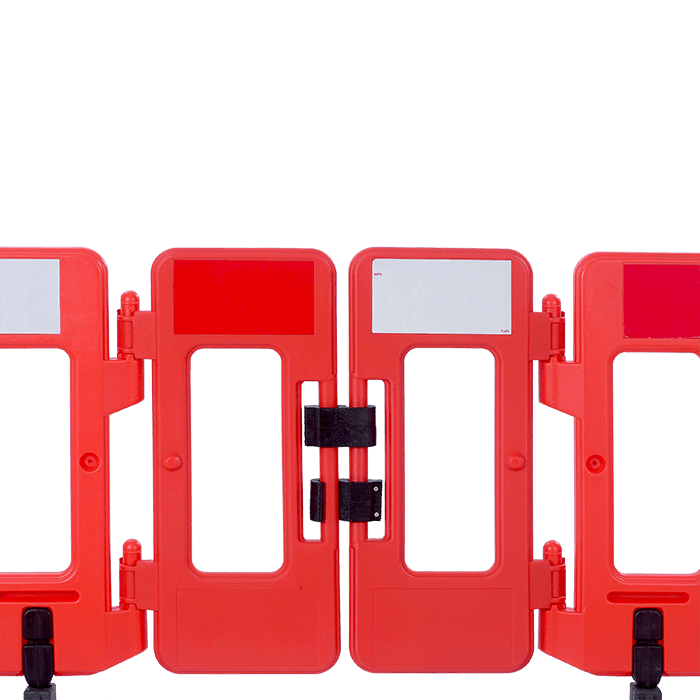

Sliding linking clips to extend barrier.

Feet can swivel 360°.

Available in various colours.

Side wings can be used as door access.

Transport

Pallet Quantity:

Pallet Size (mm):

2200 x 1200 x 2250

Pallet Spaces:

Pallet Weight (kg):

500

Standards

Conforms to requirements of BSEN8442

Reflectivity requirements of BSEN12899-1

Chapter 8 - The Traffic Signs Manual

Safety at Street Works & Road Works
– A Code of Practice.

Traffic Signs Regulations & General Directions

Spec Sheet:

Download Spec Sheet

Wind Resistance PDF

For More Information Get in touch

Customisation

Foot

Anti Trip

Full Foot

Tuff Foot

Tuff-AT Foot

Colour

Barrier

Foot

Sign

Wind Resistance

All temporary traffic barriers must be able to withstand three different classes of wind speeds with the use of a ballast. The standard BS 8442:2022 states the three classes as the following:

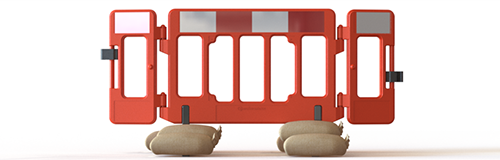

Class A: 26.3 m/s (58 mph)

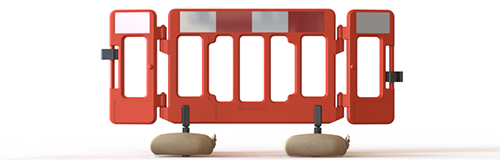

Class B: 17.6 m/s (39 mph)
Class C: 8.7 m/s (19 mph)

The Olympic Barrier system was tested under strict conditions at the Full Scale Wind Tunnel at Mira to determine at which wind speeds the barrier can withstand. Below are the results and guides as to the recommended ballast weight for each Wind Class:

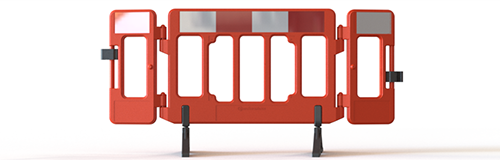

Class C
Withstood up to 19.9 mph.
Recommended Ballast Weight: 0 kg
