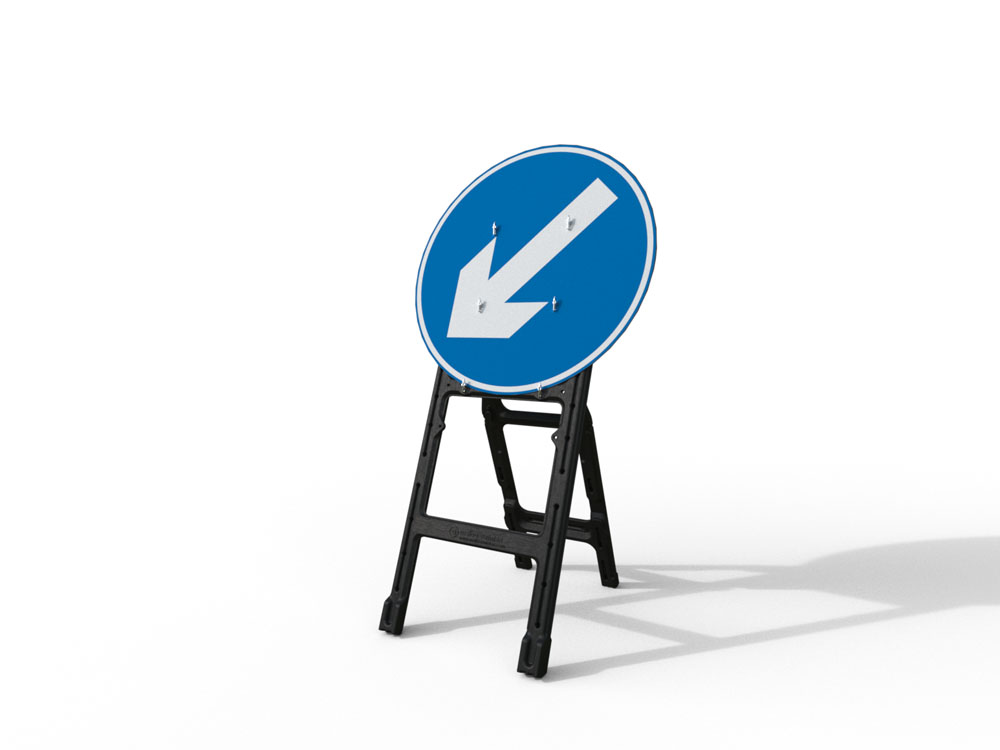

Q-Frame

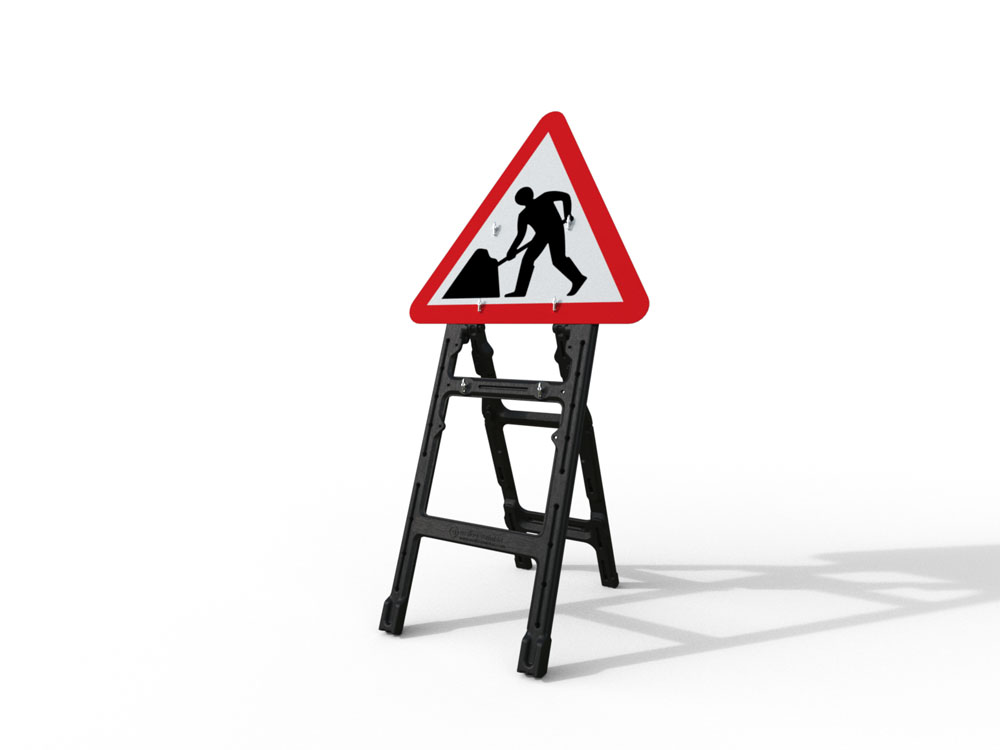

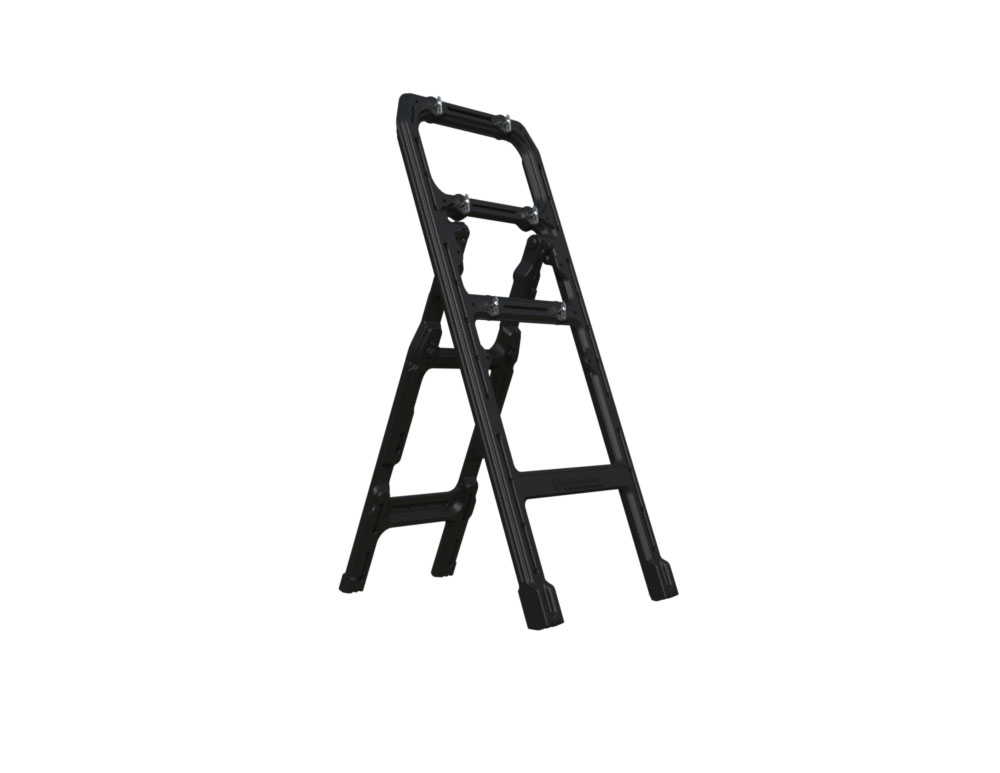

The Q-Frame is a durable plastic quick-fit frame that ensures stability and safety in any environment. Its quick-fit mechanism allows for effortless setup and removal, saving you time and effort on the job. Built to withstand the rigors of outdoor use, this frame offers a reliable solution for your road and streetworks signage needs.

Features:

Takes 300 mm and 450 mm centre sign faces.
Revolutionary Anti-skid feet.
Lighter than steel = less weight in vehicle.
Non-Metallic with no scrap value.
Non-Conductive.
100% recyclable.
Stackable - 80 to a pallet.
Can be branded with customer logo. Minimum run applies.
Can be manufactured in corporate colours. Minimum run applies.
25mm Secure Webbing prevents leg over splay.

Transport

Pallet Quantity:
80
Pallet Spaces:
2
Pallet Weight (kg):
420

Standards

Conforms to requirements of BS 8442:2015 when used with correct sign-plate.

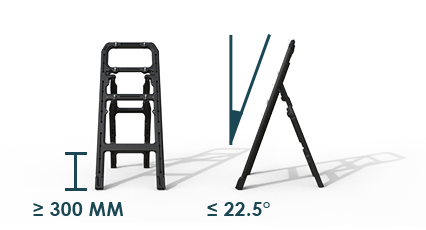

BS EN 8442 Conformance

Spec Sheet:

Download Spec Sheet Download PDF
Wind Resistance PDF Download PDF
Dimensional Drawing PDF Download PDF
For More Information Get in touch

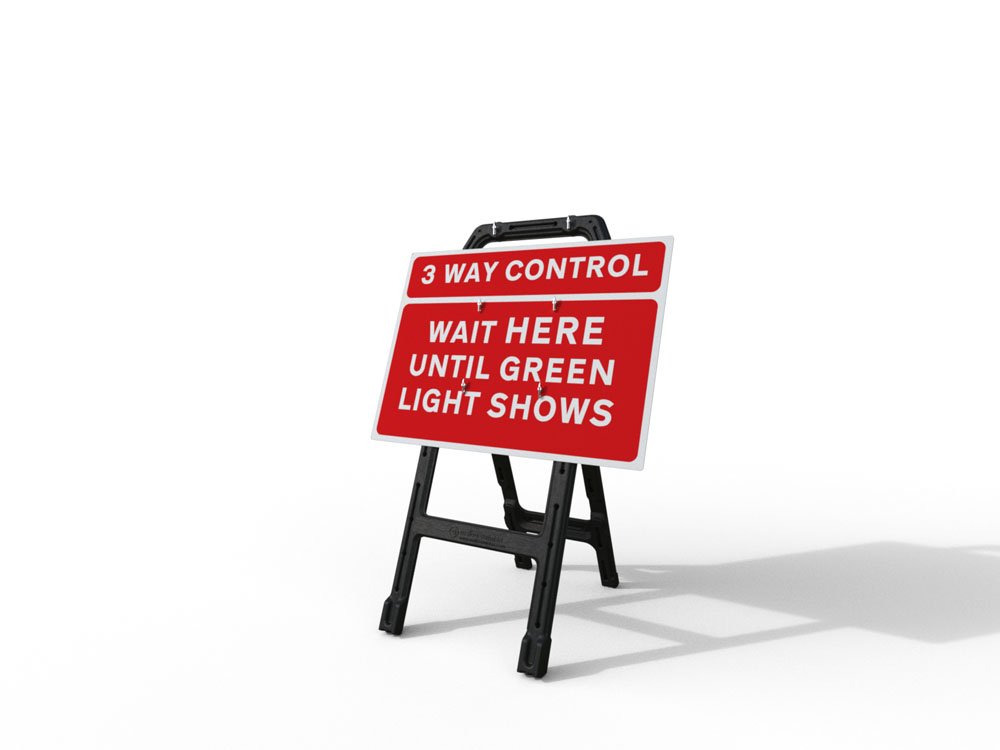

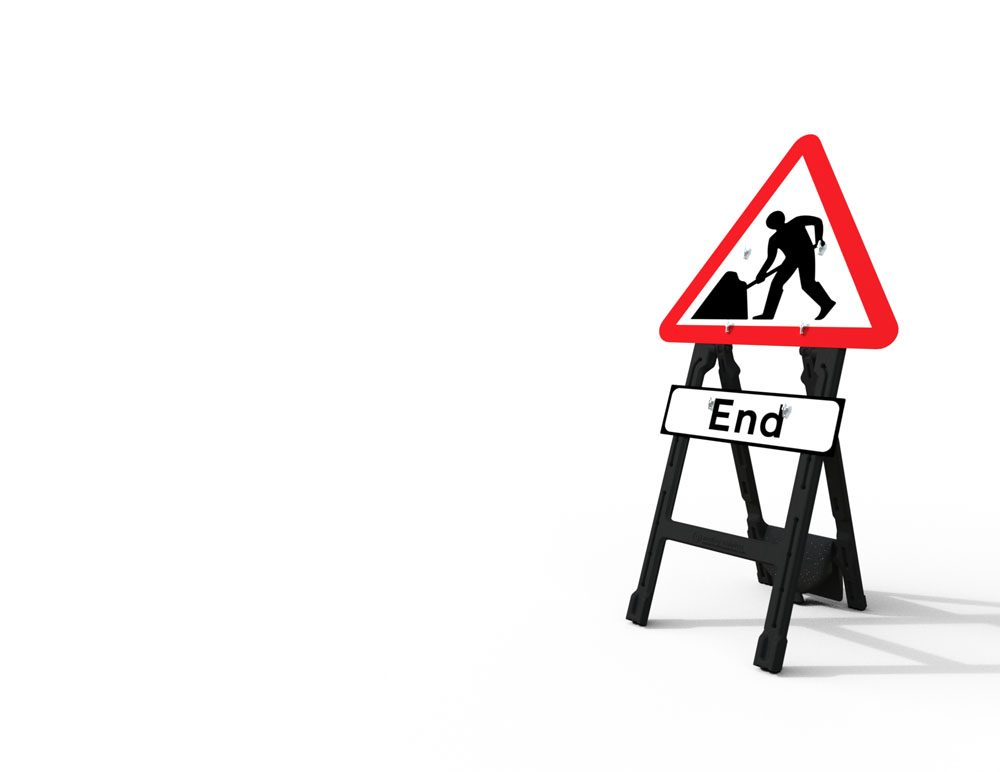

    Q-Frame Sign Faces

    Sign Faces

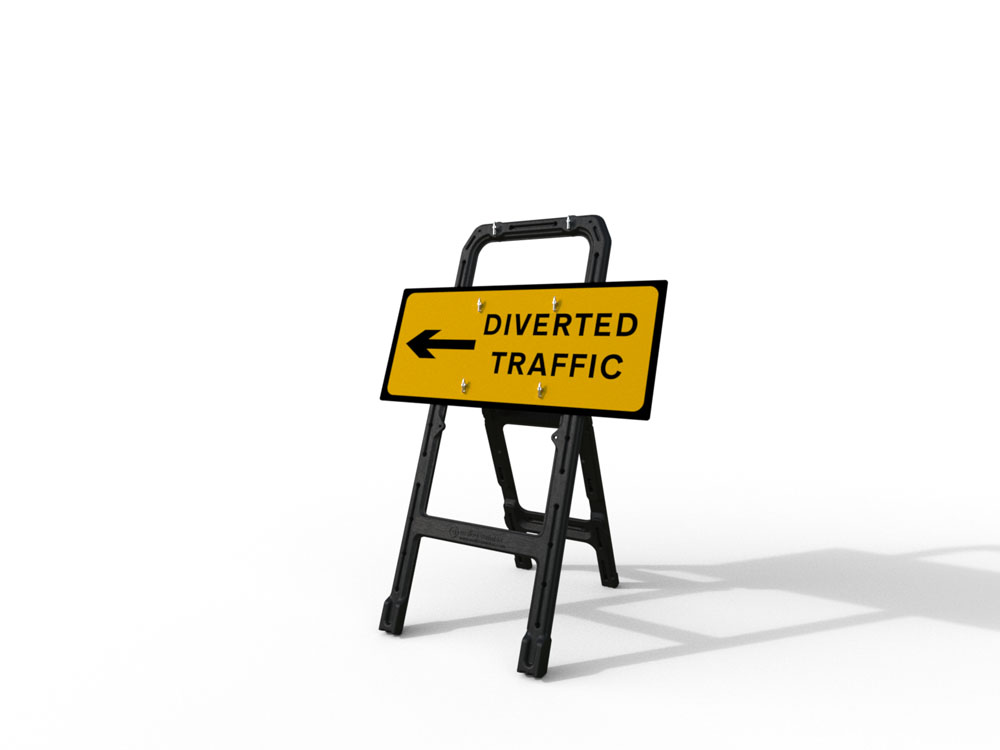

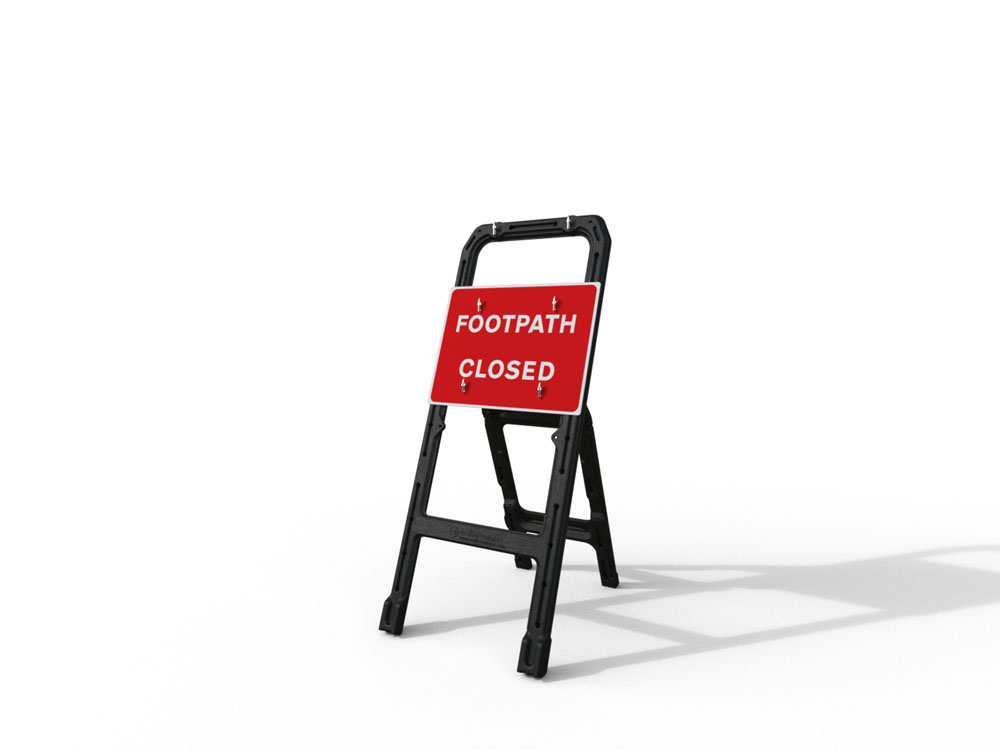

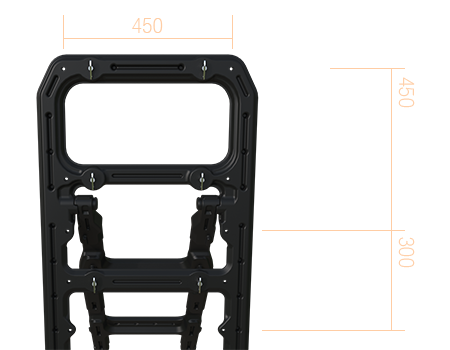

    The Q-Frame comes with Quick-Lock fasteners installed at 300mm centres as standard, with the facility to move these into 450mm centre holes.

    Q-Frame Branding

    Customisation

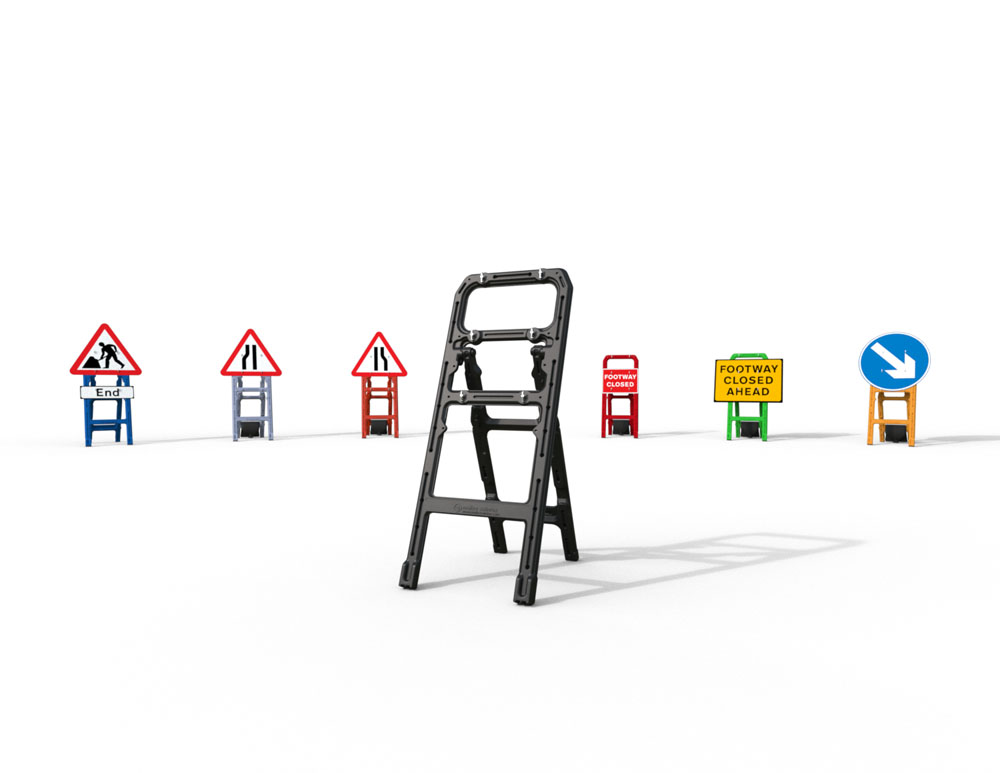

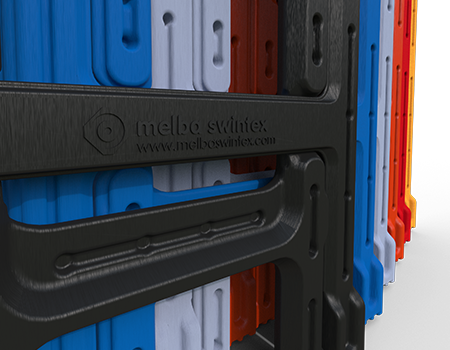

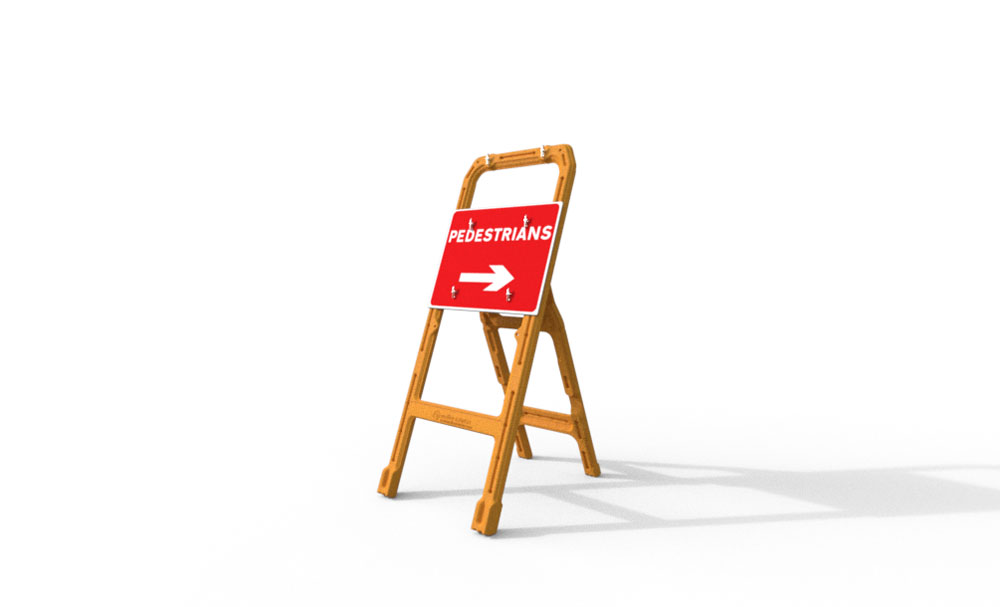

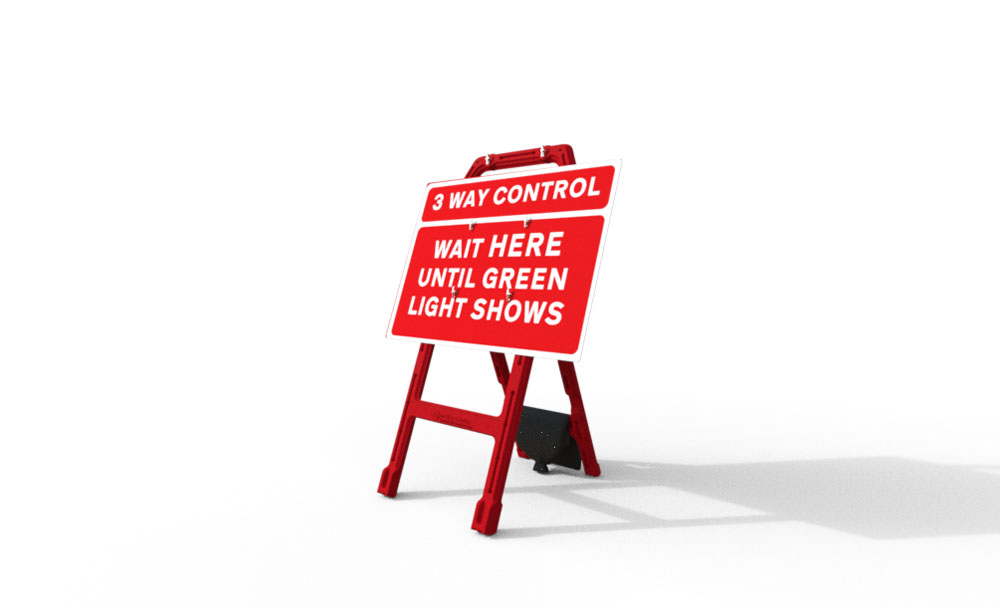

    Manufactured in Black as standard, however with the facility to manufacture with your corporate branding colours without the need for any extra processes. As well as this, corporate branding can be embossed onto the front bottom leg of the frame reducing in theft. Minimum runs apply.

    Q-Frame Deployment

    Deployment

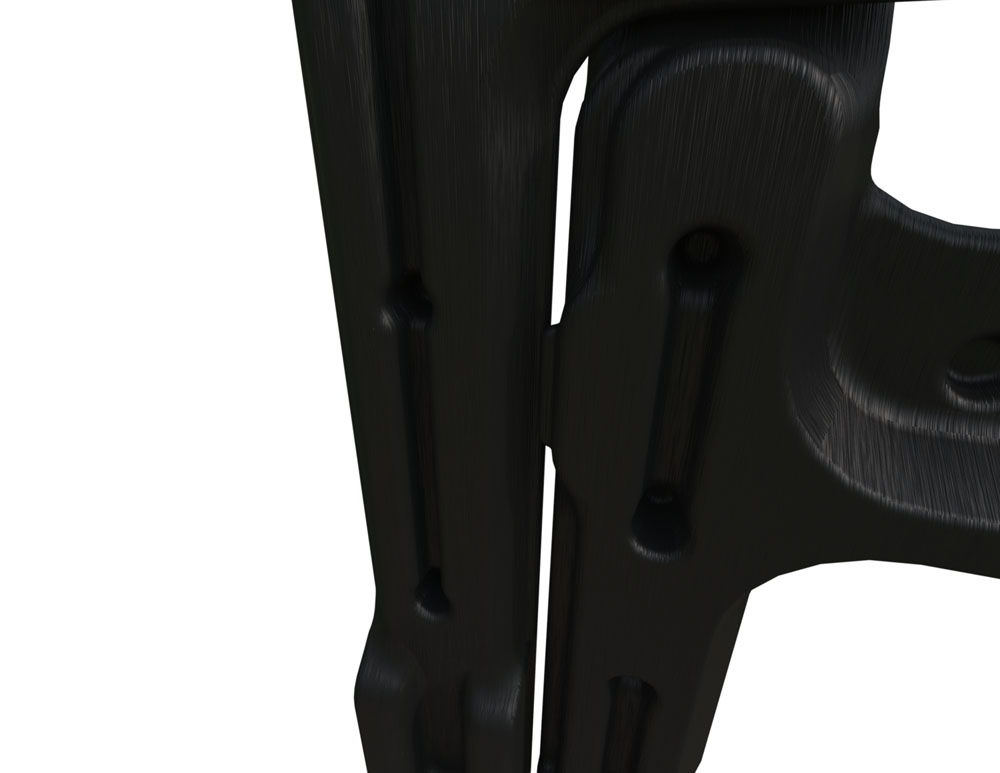

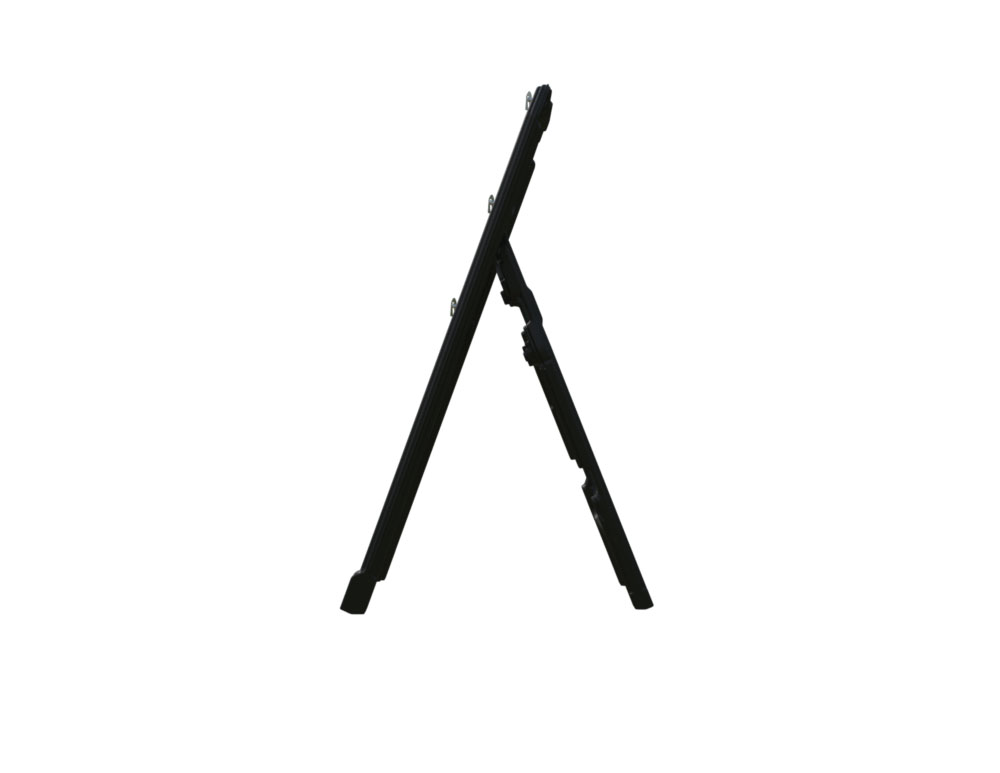

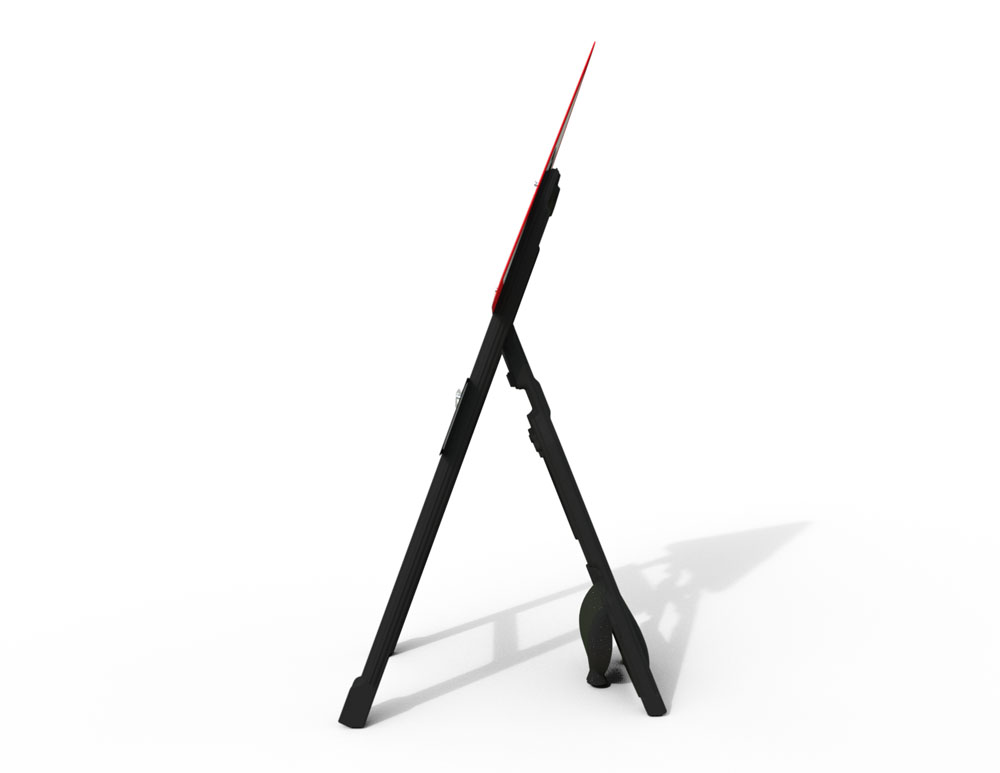

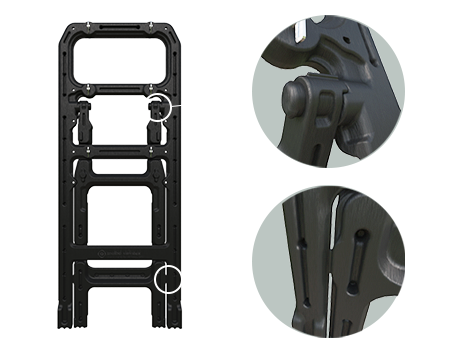

    Sophisticated form around the connection for the back legs ensures they do not come away in everyday use. Durable strapping provides indication as to when the legs are in the open position, and a smart catch feature when in the home position.

    HOG600 Max Fill

    Transport

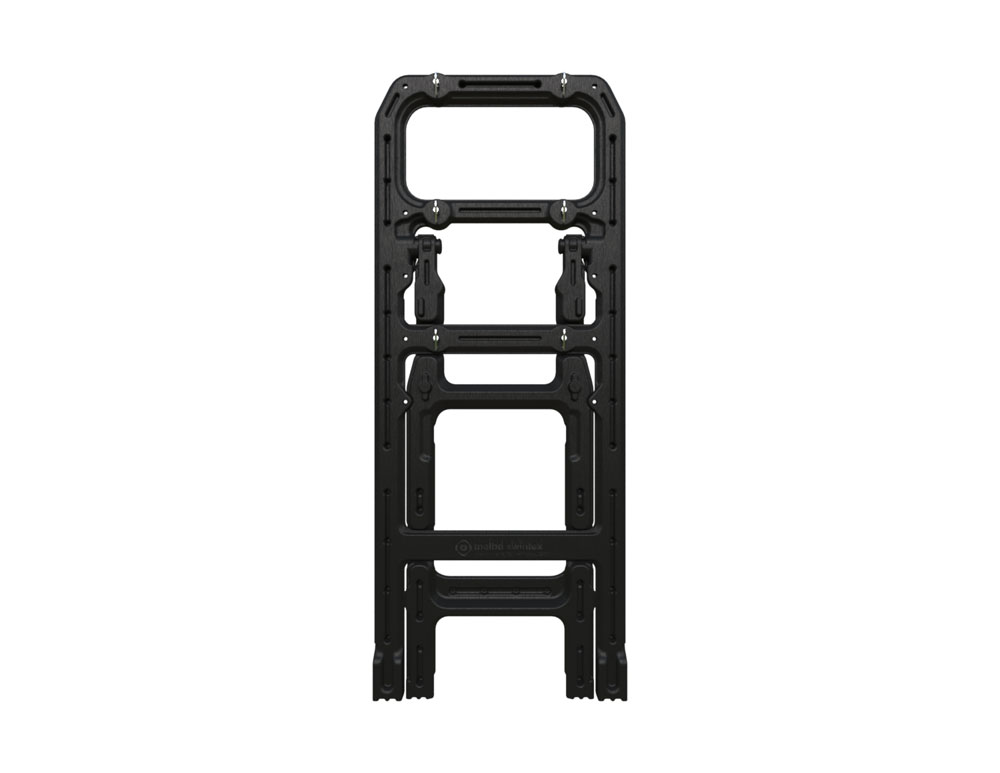

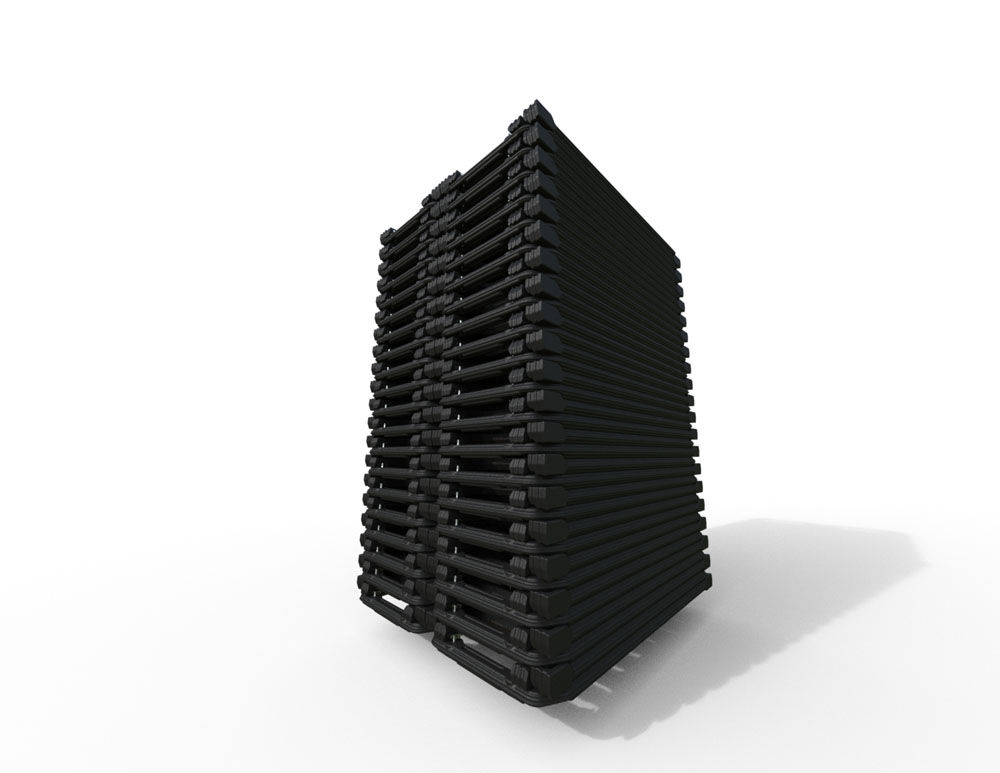

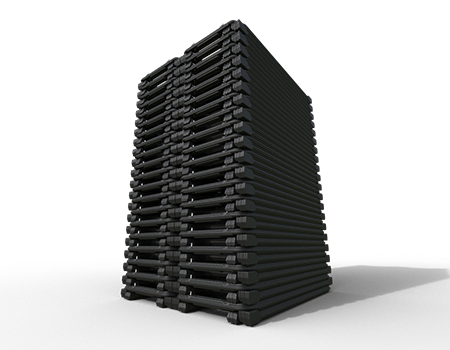

    Unique to the Q-Frame is its ability to stack with itself, resulting in safer transport and utilisation of space more efficiently. 80 pieces to a pallet, with lighter-in-weight than its metal counterpart means less fuel required for transport.

    Wind Resistance:

    All temporary traffic signs must be able to withstand three different classes of wind speeds with the use of a ballast. The standard BS 8442:2015 states the three classes as the following:

    Class A: 26.3 m/s (58mph)
    Class B: 17.6 m/s (39mph)
    Class C: 8.7m/s (19mph)

    The Q-Frame is the first Quick Fit frame to be tested under strict conditions at the Full Scale Wind Tunnel at Mira to determine at which wind speeds the sign can withstand. Below are the results for the standard sign face range for the Q-Frame. These results are a guide to the recommended ballast weight for each Wind Class:


    Class C
    Class B
    Class A
    750 Triangle
    10 kg
    50 kg
    75 kg
    750 Circle
    10 kg
    50 kg
    75 kg
    600 x 450
    10 kg
    50 kg
    75 kg
    1050 x 450
    10 kg
    60 kg
    80 kg
    1050 x 750
    20 kg
    65 kg
    90 kg
